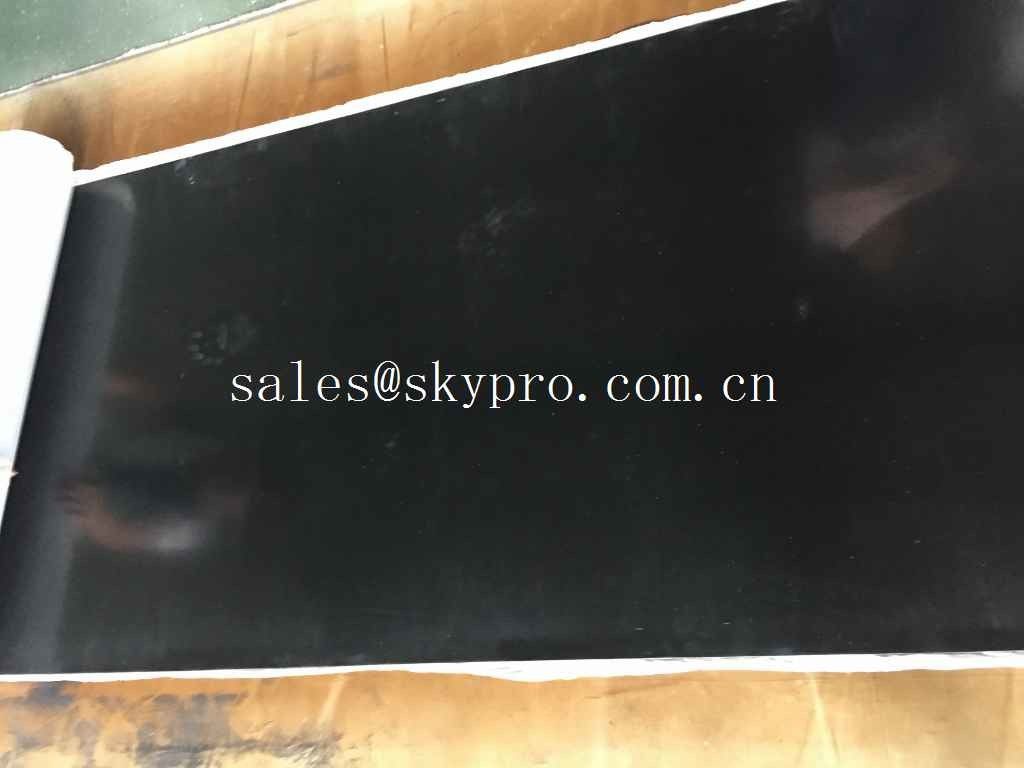

Product: self-adhesive rubber membrane

Dimensions:1-20mmx1200mm(TXW)

Performance: with middle pressure, good water proof, anti shock and sealing performance

Density:1.6g/Cm3

Tensile strength:>=3.0MPa

Hardness:75shoreA

Elongation:>=200%

Work temperature:-30-70 C

Application: easier stick to different kind of material surface as metal, concrete, plastic etc.

NR/SBR/CR/NBR/EPDM/Viton/silicone rubber sheet

1:ISO9001:20002:Realiable quality, competitive price3.good smell

Specifications:

Thickness: From 1 to 50mm

Width: From 0.90 to 2.0m

Surface Finished: Smooth or cloth impression

Technical data:

Tensile strength: 2-20Mpa

Hardness: 40-80Shore A

Tear strength: 12--40 N/mm

Elongation: 200%-450%

Specific Gravity: 1.05-2g/cm3

Working temperature: -25/70°C

Nanjing Skypro Rubber & Plastic Co., Ltd is specialized in manufacturing high performance rubber sheets made of NR,SBR,CR,NBR,EPDM,CSM,Viton,Silicone, etc. Our rubber sheets are made according to the client’s specification. These sheets offer durability, safety and strength. We produce rubber sheets in various size and patterns. The rubber sheets produced by us are used in variant applications like flooring purpose, dampers, belts and bumpers. We manufacture self-adhesive rubber mat and Styrene-Butadiene Rubber Sheets(SBR)

A polymer used in the manufacture of expanded rubber. It is very economical and possesses no unique chemical resistance properties. SBR rubber can be compounded to provide very fine abrasion, wear, and tensile qualities. SBR can be readily substituted for natural rubber in many applications with significant cost savings. Resilience is about the same as natural rubber. SBR rubber is a staple in the HVAC and construction industry as it is versatile, flexible and tough enough to stand up. SBR rubber is a good choice when deciding to choose a material that has great mechanical properties and flexibility.

Natural Rubber Sheets(NR)

These rubber sheets offer outstanding physical properties along with temperature resistance used for service temperature up to 80°C. This product is great solution for variant industries but it has poor resistance to petroleum-based ozone, fluids and sunlight.

Neoprene Rubber Sheets(CR)

These sheets are best for acids, alkalis and open flames. The neoprene sheets supplied by us are outstanding for high temperature range of 40° C to 120° C. These sheets are meagerly used in different organizations like refineries, processing units and chemical industries.

Nitrile Rubber Sheets(NBR)

These sheets have excellent resistance for petroleum products and many more industries like oil resistant seals and gaskets. The nitrile rubber sheets stocked by us can easily work on highest temperature of 110 F. These sheets contain good physical properties like abrasion resistance and good ageing resistance.

Silicone Rubber Sheets(Q)

These sheets contain good resistance for chemicals, acids and alkalis. These retain electrometric properties at any temperature. It stands at 200 C easily. These sheets have high resistance for ozone, ultraviolet radiation and oxygen but these are not good for oil industries.

E.P.D.M Rubber Sheets(EPDM)

The E.P.D.M rubber sheets made by us have outstanding compatibility with huge range of chemicals and intermediates. These sheets are extensively used in chemical, fertilizer plants and pharmaceutical industries.

Viton Rubber Sheets(FPM/FKM)

The viton sheets produced by us are used for specific industries of heat and oil resistance. These exhibit excellent resistance for ageing and flame.

Packing and transportation:

Packing way	Packed in roll or flat sheet,50-100kg/roll or according to specific requests from clients
Packing material	Inner PE film+ outer Woven plastic bags as standard, palletized for extra reinforcement if necessary
Shipping marks	Neutral packing with printed marks.
Delivery time	15 days since receipt of PO and down payment
Freight	Sea(FCL & LCL) or air freight
Special size	We provide cutting services for special sizes
Lamination	We provides extra lamination with PSA, textiles or other materials.

FAQ(Frequently Asked Questions)1. What is the capability of your company ?Skypro is a professional manufacturer of rubber sheet for more than two decades.Top 10 biggest rubber factory in China.2.What is production capability each year?We produce more than 18000 tons of rubber sheet products each year.3.How can I get some samples?We are pleased to offer you free samples. New clients are expected to pay for the delivery cost, this charge will be deducted from the payment for formal order.

About Rubber

rubber variety(ASTM )		IR	SBR	BR	CR	NBR
chemical structure		Isoprene Rubber,Cis 1,4- Polyisoprene “Synthetic Natural Rubber”	Styrene Butadiene Rubber	Polybutadiene Rubber	Poly-2-chlorobutadiene -1,3 chloroprene Rubber, Neoprene	Butadiene Acrylnitrile Rubber,Nitrile Rubber
main characteristics		high flexibility, good comprehensive physical mechanic performance	better wear-resistant and anti-aging function than NR, lower prices	same wear-resistant with NR and better flexible and lower temperature resistant than NR	good climate resistant, ozone proof, hot resistance and chemical resistant	good oil-resistant, wear-resistant and anti-aging
quality of NR	proportion	0.93	0.94	0.93	1.23	0.96~1.02
	meni adhesive meni adhesive ML 1+4 100 ℃	45 ~150	30~ 7 0	35~55	45~120	30~100
rubber physical performance	hardness range ( SHORE A )	2 0~100	4 0~100	30~100	45~120	30~130
	anti-tensity (MPa)	7~27	7~24	7~20	7~27	7~27
	elongation rate (%)	100~ 700	100~ 700	100~ 700	100~ 600	100~700
	re-elasticity	excellent +	good	excellent +	excellent	good
	tearing force	excellent	middle ~ good	good	good	good
	wear-resistant	excellent	excellent	excellent	excellent	excellent
	compress & distortion	good	good	middle	good	good
	temperature range(℃)	-75~90	-60~100	-100~100	-50~120	-50~120
	climate resistant	middle	middle	middle	excellent	bad
	ozone proof	bad	middle	bad	good ~ excellent	middle
	electric performance	excellent	middle	good	good	bad ~ middle
	gas penetrating resistant	middle	middle	middle	good	excellent
oil-resistant and acid& alkali resistant	oil-resistant	bad	bad	bad	good	excellent
	fire-resistant	bad	bad	bad	middle	good
	alcohol	excellent	excellent	excellent	excellent	excellent
	MEK	good	good	good	good	middle
	water	excellent	good ~ excellent	bad	good	excellent
	high concentration inorganic acid	middle	bad	bad	middle	middle
	low concentration inorganic acid	good	good	good	excellent	good
	high concentration alkali	good	good	good	excellent	good
	low concentration alkali	good	good	good	excellent	good
application		tyre, rubber shoes, rubber pipe, adhesive tape, air spring	tyre, rubber shoes, rubberized fabrics, sports products, mattress, accumulator shell, adhesive tape	car & air plane tyre, rubber shoes, shock absorber rubber, adhesive tape, rubber pipe	wire sleeve, conveying line shock absorber rubber, window & door wedge, rubber adhesives, rubberized fabrics	oil seal, washer, oil-resistant rubber pipe, printing rubber roller, textile leather roller
